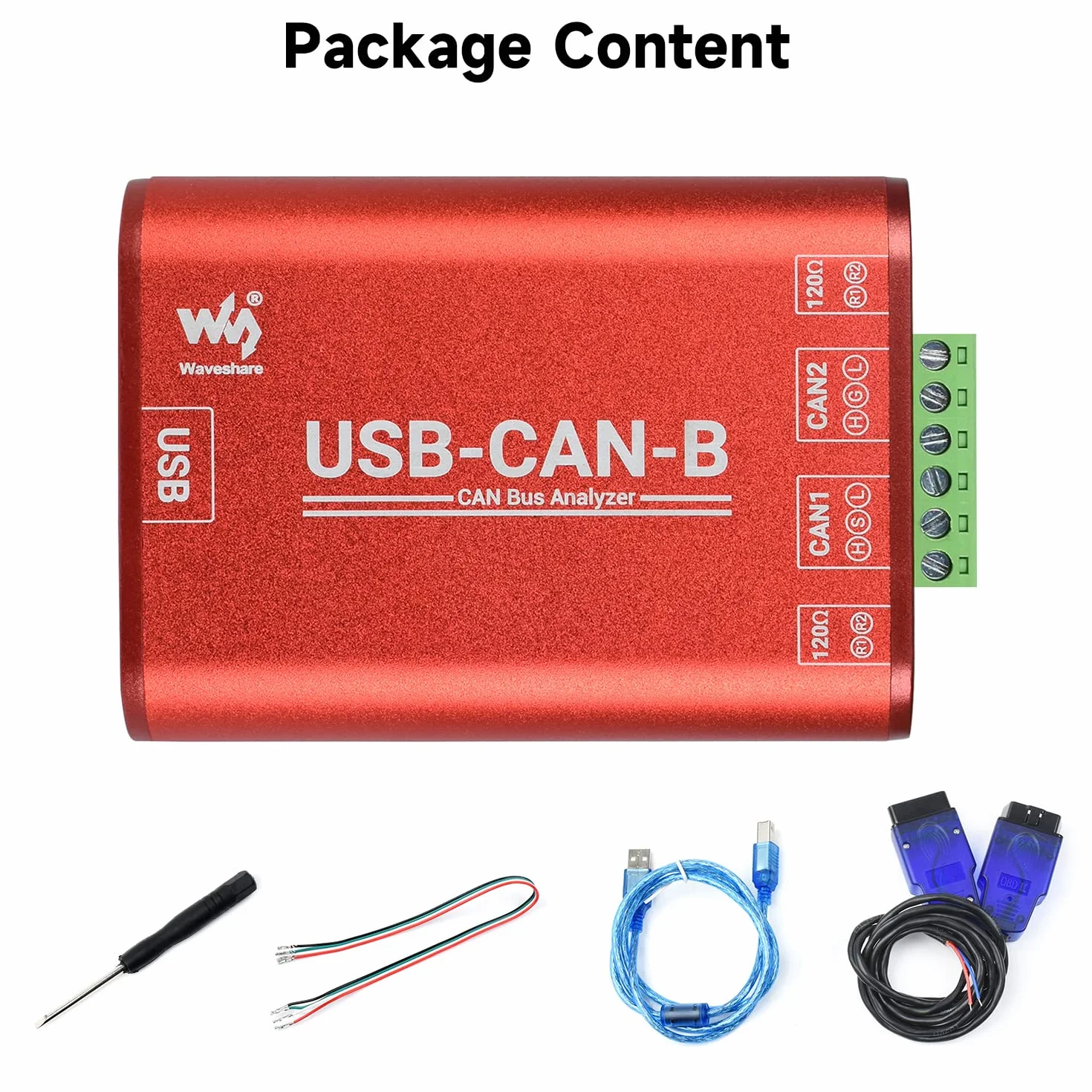

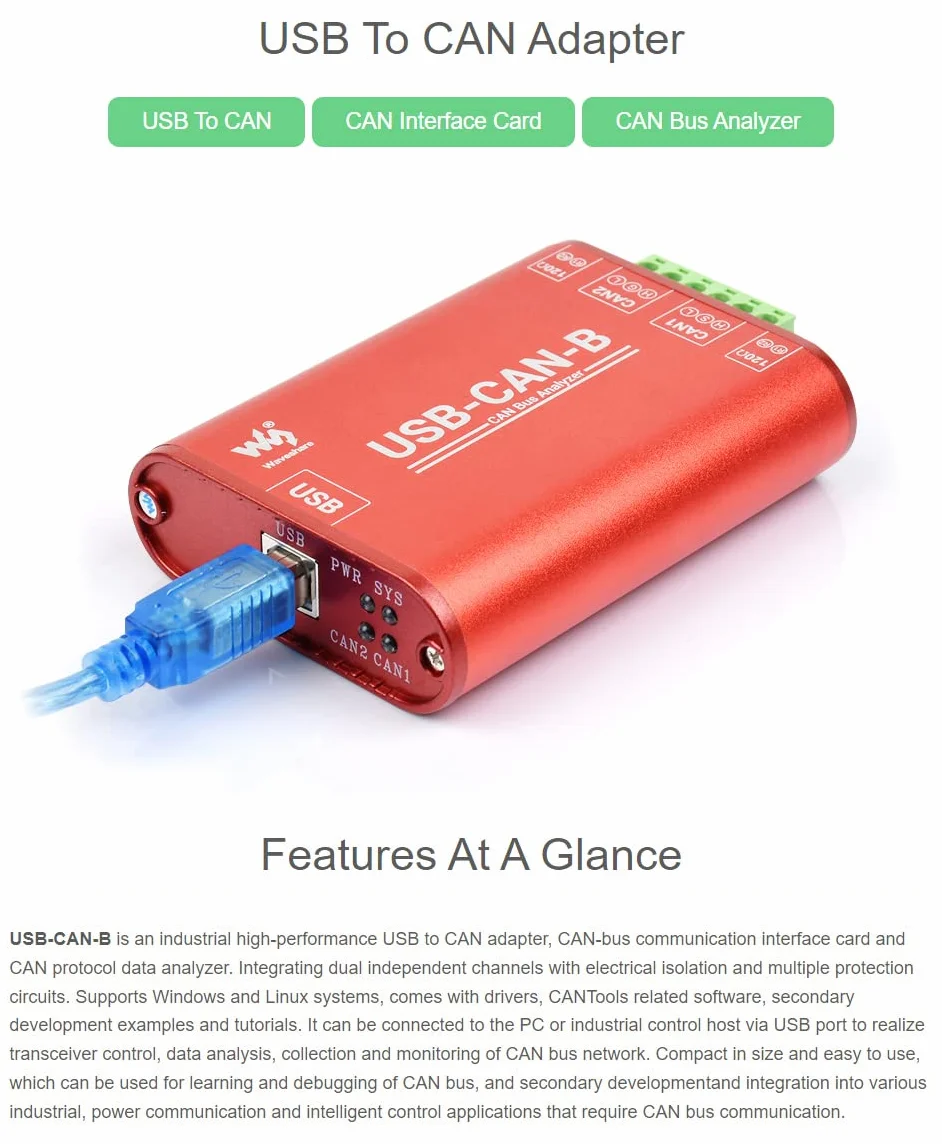

Waveshare USB to CAN Adapter Dual-Channel CAN Analyzer Industrial Isolation Support Windows and Linux

Zgodne urządzenia: Komputery osobiste, Raspberry Pi, Jetson Nano
Szczególne zastosowania produktu: Systemy sterowania przemysłowe, komunikacja mocy, aplikacje kontroli inteligentnej, rozwój i debugowanie, komputery osobiste, Raspberry Pi, Jetson NanoPokaż więcej
Typ złącza: USB
Marka: Waveshare
Liczba portów: 2
Liczba opakowań produktu: 1
Typ wtyczki zasilania: Brak wtyczki
Liczba jednostek: 1 Count
Zgodność z inteligentnym domem: Brak zgodności z inteligentnym domem
Producent: Waveshare

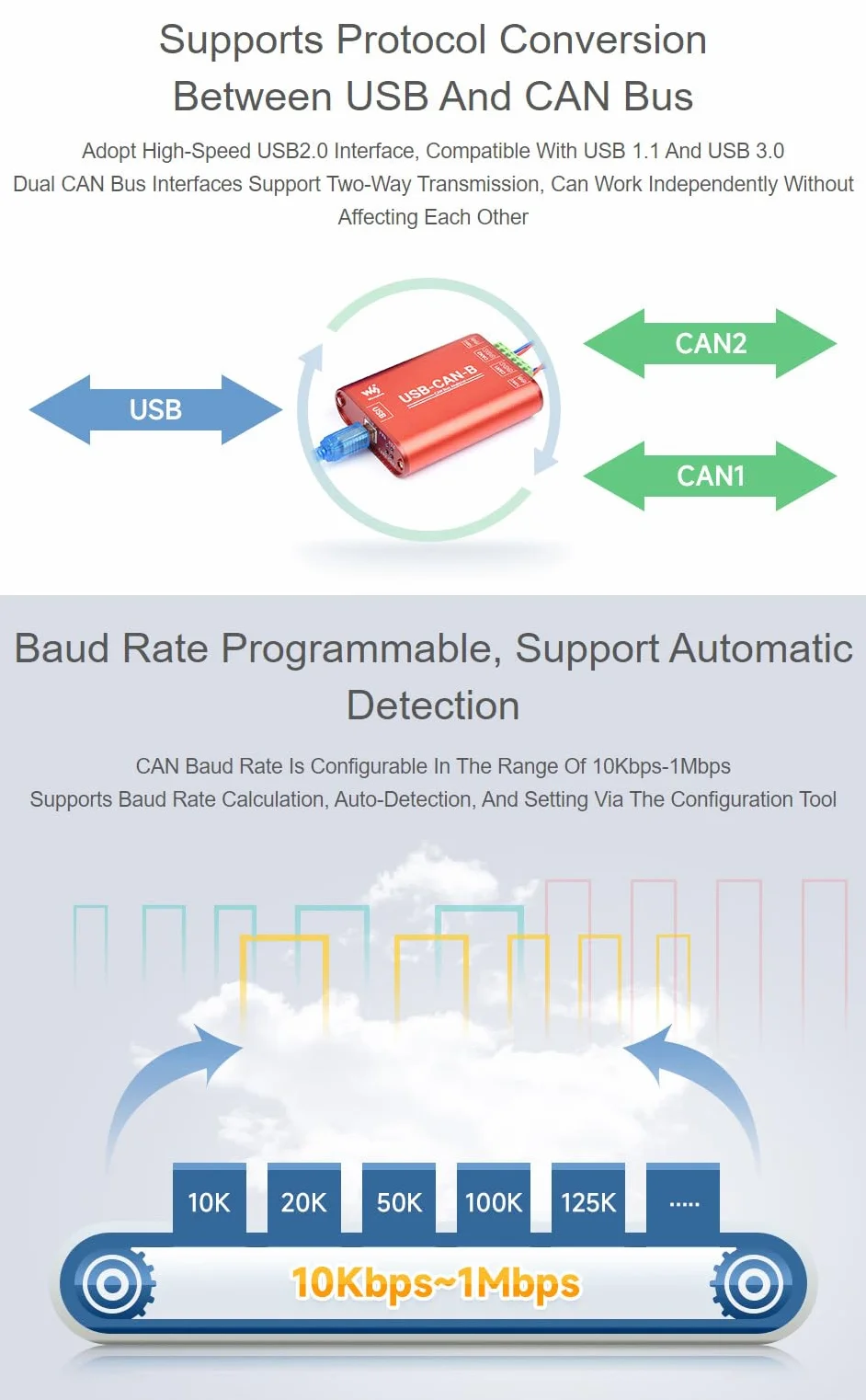

- Adopt High-Speed USB2.0 Interface, Compatible With USB 1.1 And USB 3.0 Dual CAN Bus Interfaces Support Two-Way Transmission, Can Work Independently Without Affecting Each Other.
- CAN Baud Rate Is Configurable In The Range Of 10Kbps-1Mbps Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool.
- Support CAN 2.0A, CAN 2.0B, CANOpen, SAE1939, DeviceNet, ICAN, ISO 15765 Protocols. CAN2 Can Be Set As Hig-Speed CAN Or Low-Speed/Fault-Tolerant CAN By The Software.
- Provide examples for secondary development projects on various mainstream development platforms: C++Builder, C#, VC, VB, VB.NET, Delphi, LabVIEW, LabWindows/CVI, Qt, Matlab, Python/Python-can, Qt samples under Linux.
- Support Windows XP/7/8/10/11 and Linux systems such as Raspberry Pi OS and Ubuntu under Jetson Nano, provide corresponding driver libraries, development examples and usage tutorials, convenient for entry and secondary development.
